Contec Pulse Oximeter – OLED


Pilot Finger Pulse Oximeter CMS-50D – Blue

Only 1 left in stock

Categories: ,

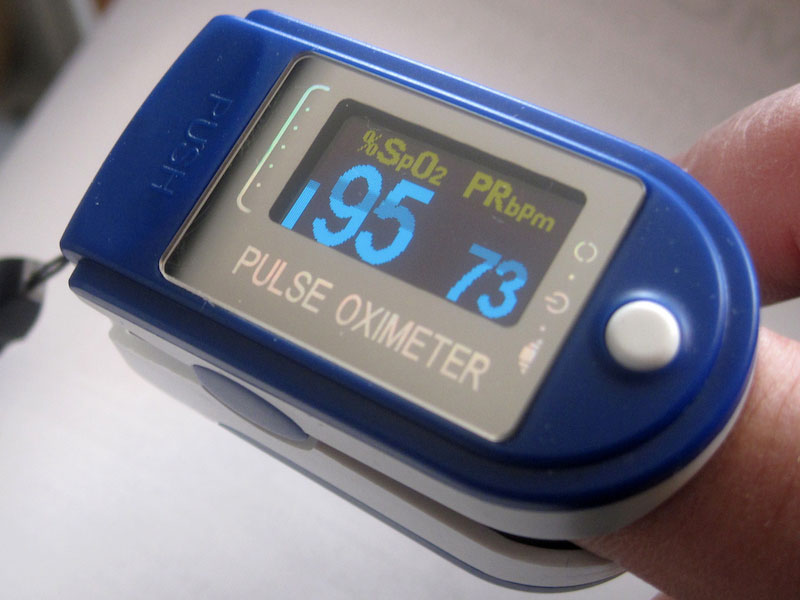

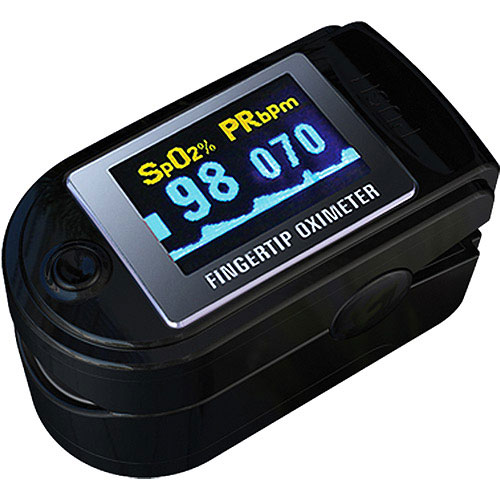

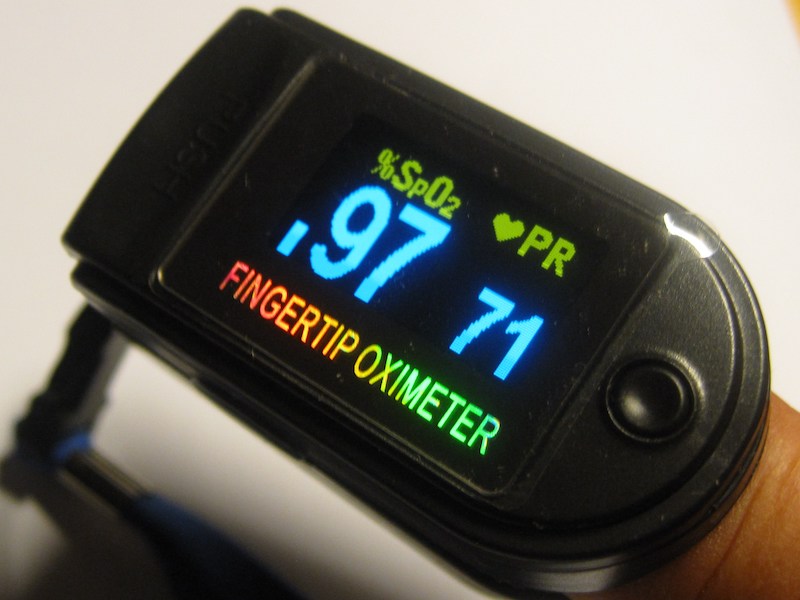

Pilot Finger Pulse Oximeter Contec ™ CMS-50D


  • Can measure SPO2 and PR accurately
  • SPO2 and PR display, PR waveform and bar-graph display
  • Four directions and six modes, colour OLED 6 direction display
  • Four levels adjustable brightness
  • Low power consumption; shuts off automatically when no signal
  • Can work more than 30 hours continuously
  • Low battery indication
  • Small size (57 x 31 x 32 mm)

Technical Parameters:

  • 1.3″ double Color OLED display (160 x 64 px)
  • Pulse Ratio: 30-254 BPM
  • SPO2 measuring range: 35-100%
  • Resolution: SPO2 : 1% Pulse Rate: 1bpm
  • Pulse Waveform display: bar-graph display
  • Battery indication: OLED display
  • Power: 2 x 1.5V (AAA) Alkaline batteries
  • Adaptable range: 2.6V – 3.6V
  • Working current: <= 25 mA
  • Accuracy: SPO2 ± 2% (70%-99%), unspecified (<70%), ± 2BPM for pulse ratio.
  • Measurement at Low Perfusion: The values of SPO2 and pulse rate can be displayed properly when pulse saturation is at 0.4%.
  • Resistance to surrounding light: Deviation is smaller than ± 1% between value of Oxyhemoglobin measured in natural lighting indoor condition and present lighting sources and that measured in dark room.
  • Automatic shutdown function: The device will power off automatically within 5 seconds when there is no finger in the device. When working, the display direction can be changed by pressing the button shortly. There are six modes of direction. A long press can change the brightness of the screen.

Additional information

Weight 0,100 kg
