FenixN – Vario Navigation system

 1.300,00 2.160,00

FenixN – vario navigation system of the future.

SKU: N/A Categories: ,

Description

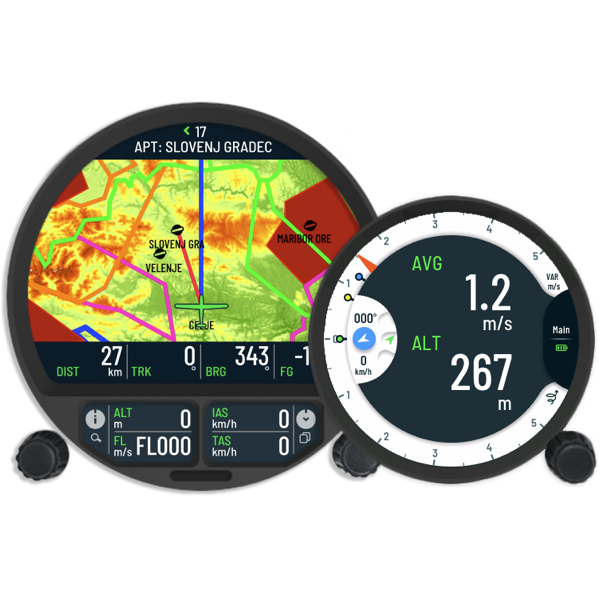

RC electronics FenixN is a vario-navigation system that consists of a 80 and 57 mm size unit. Both units have the biggest display area available for their respective instrument sizes. It integrates detailed terrain maps with all needed functions for basic or competition gliding flying.

Integrated 72 channel GPS receiver, IGC approved flight recorder with ENL recording, latest technology MEAS pressure sensors, high detailed terrain maps, Bluetooth, backup battery and support for many 3rd party devices (AHRS, Flarm, radio, ..) will fulfill any desire you might have.

FenixN unit will display attitude and heading when an external AHRS module or anemoi system is connected.

anemoi Live wind will be displayed on Main-, Navigation- and Thermal assistant page with: www.fly-anemoi.com

Features:

  • Internal beeper
  • Integrated voice module
  • Internal 32 GB solid state memory
  • Two rotary-push knobs on main unit
  • One rotary-push knob on indicator unit
  • Level 1 IGC ENL approved flight recorder
  • Build-in Bluetooth and backup battery

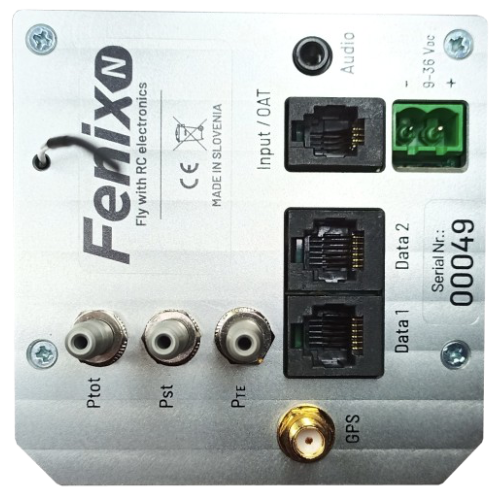

  • Two data ports for 3rd party devices (AHRS, Flarm, Radio, PNA, …)
  • attitude and heading displayed with anemoi system connected
  • Easy connect to LK8000, Oudie, XCSoar, OpenVario via Bluetooth
  • Front facing micro SD card port for data transfers
  • 2nd seat device connects wirelessly via Bluetooth
  • Remote stick connects wirelessly via Bluetooth
  • Wind calculation in both circling and straight flight
  • Live wind arrow with anemoi system connected
  • Detailed terrain maps with accurate AGL information
  • Airspace display with warnings
  • Multi language support
  • Flarm radar screen
  • Thermal assistant

Technical Specifications:

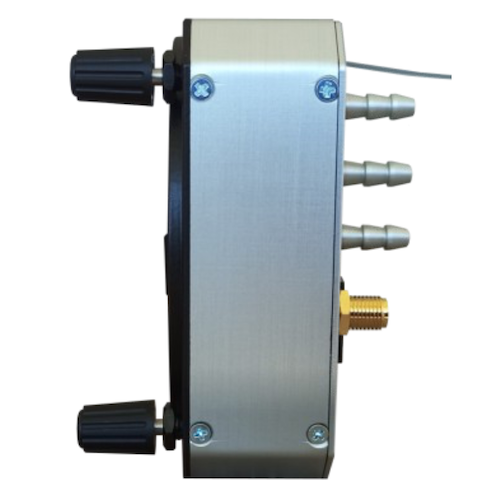

  • Main unit: 83 x 83 x 27 mm, 220 g
  • Indicator: 62 x 65 x 30 mm, 120 g
  • 80 / 57 mm standard cutout
  • Input Voltage: 9 to 17 Vdc
  • Consumption: 210mA @ 13 Vdc
  • Audio output: 1W (RMS) @ 8Ω

Included in package:

  • FenixN main and indicator unit
  • External GPS antenna

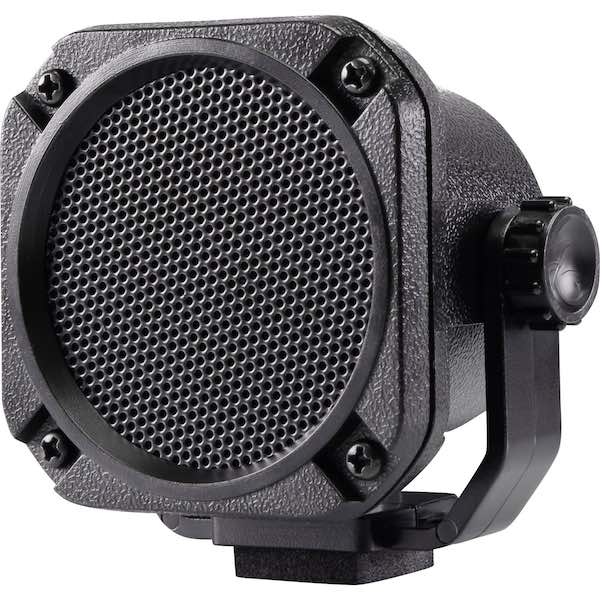

  • External 5W speaker
  • Baro calibration sheet
  • External inputs adapter
  • Temperature sensor

Downloads:

Additional information

Weight 0,340 kg
Version

1st seat, 2nd seat
