Description

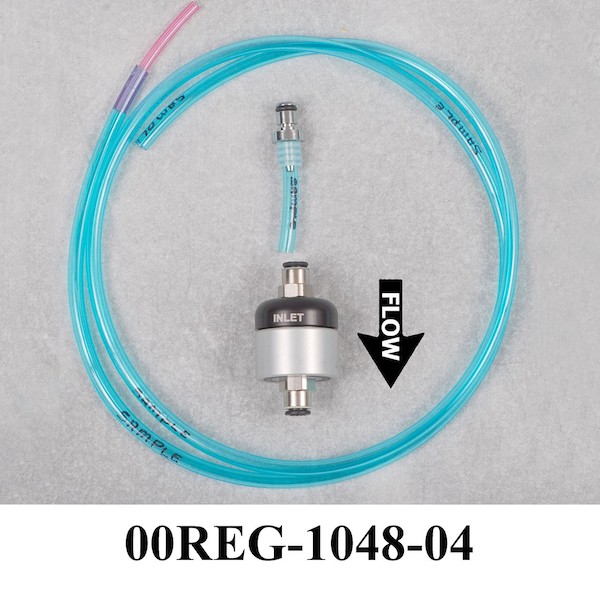

The Mountain High EDS In-line reducing regulator is for applications in which you may wish to operate your EDS O2D1 or O2D2 units from an oxygen source other than our 20 psi regulators such as an oxygen source of 30 to 90 psi.

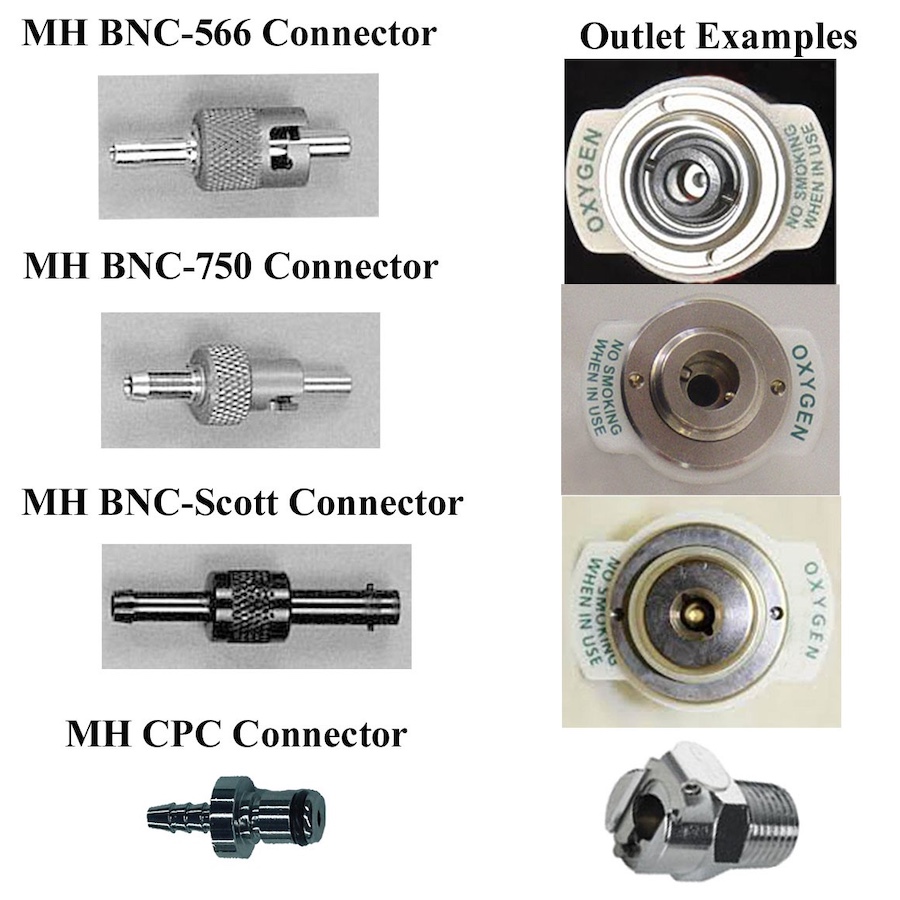

The EDS In-Line pressure reducing regulator can operate up to four (4) O2D1 units or two (2) O2D2 units. The EDS in-line regulator kit can be optionally ordered with one of the three most common OEM-type BNC connectors found in most aircraft of the time (shown in photo) for direct “plug-n-fly” for your aircraft type.
Below is a fit list and may not be correct as manufacturers may have made mid-year changes.
You should visually verify your outlet port before ordering.
BNC-PB-566
Fits most Cessna singles prior to 1980
Fits most Cessna twins prior to 1970.
BNC-PB-750
Fits most Cessna singles 1980 and later.
Fits most Cessna twins 1970 and later.
Fits most Diamond aircraft.
BNC-Scott
Fits most Beachcraft, Mooney, Piper, and others.
CPC style
Fits Cirrus, Columbia, Corvalis and many other newer models.
