Fenix – vario navigation system of the future.

Clear
SKU: N/A Categories: ,

Description

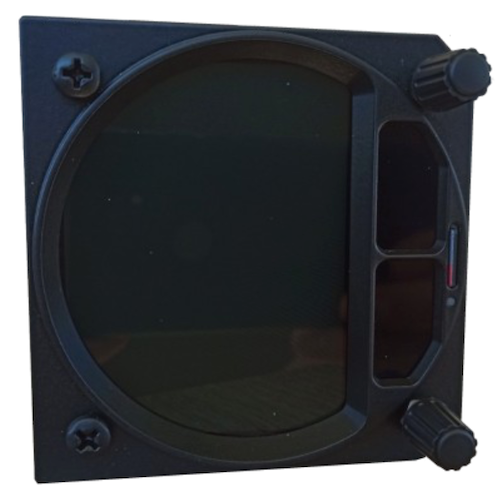

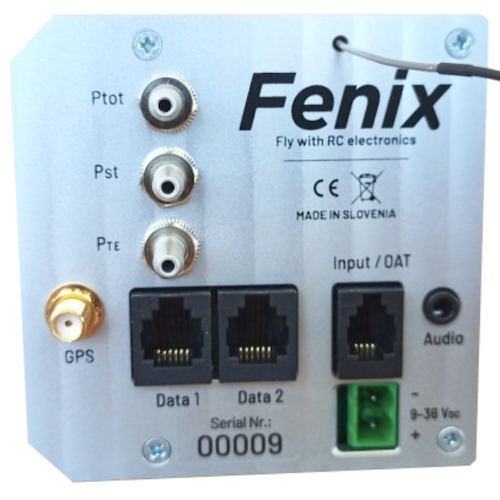

RC electronics Fenix … a new generation of vario-navigation system with speed to fly and more. It has the biggest, sunshine readable, display area in 80mm instrument sizes.

Integrated 72 channel GPS receiver, IGC approved flight recorder with ENL recording, latest technology MEAS pressure sensors, Bluetooth, backup battery and support for many 3rd party devices (Flarm, radios, ..) will fulfill any desire you might have.



Features:

  • Internal beeper
  • Integrated voice module
  • Internal 16 GB solid state memory
  • Level 1 IGC approved flight recorder
  • Two rotary-push knobs for user interface
  • Build-in Bluetooth
  • Two data ports for 3rd party devices (Flarm, Radios, PNA, …)
  • Easy connect to LK8000, Oudie, XCSoar, OpenVario via Bluetooth
  • Front facing micro SD card port for data transfers
  • 2nd seat device connects wirelessly via Bluetooth
  • Remote stick connects wirelessly via Bluetooth
  • Wind calculation in both circling and straight flight
  • Flarm radar and Flarm warnings
  • Airspace display with warnings
  • Multi language support
  • Thermal assistant

Technical Specifications:

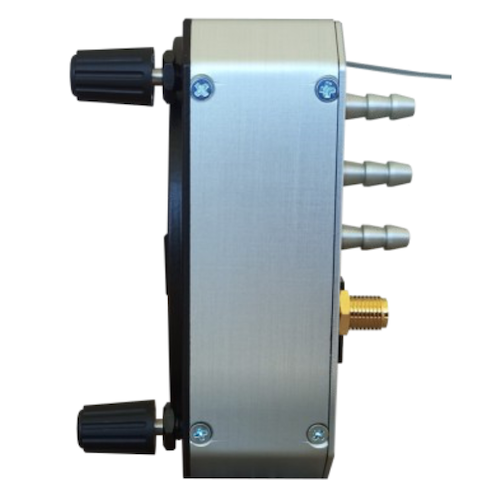

  • Dimensions: 83 x 83 x 27 mm
  • 80 mm standard cutout
  • Weight: 220g
  • Input Voltage: 8 to 17 Vdc
  • Consumption: 130mA @ 13 Vdc
  • Audio output: 1W (RMS) @ 8Ω

Included in package:

  • Fenix unit
  • External GPS antenna
  • External 5W speaker
  • Baro calibration sheet
  • External inputs adapter

Downloads:

Additional information

Weight 0,220 kg
Version

1st seat, 2nd seat
