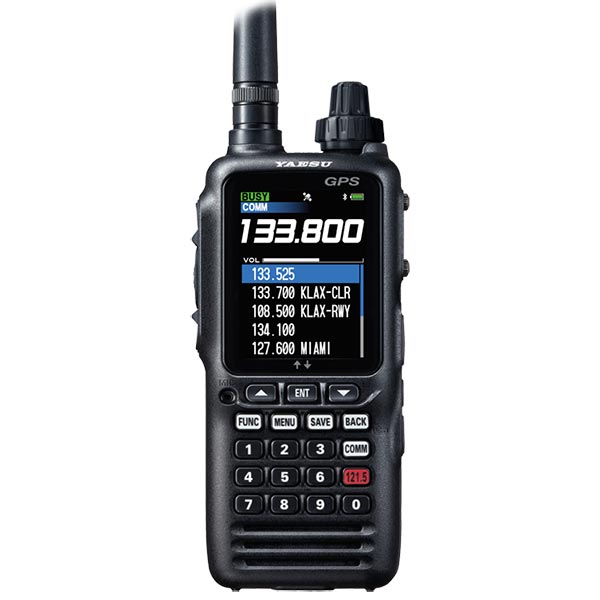

Yaesu FTA-850L transceiver

 439,00

The Yaesu FTA-850L has build in GPS, VOR and ILS navigation, featuring a bluetooth module allowing operation with a commercially available bluetooth headset, or use with Yaesu’s optional SSM-BT10 headset.

In stock

Description

Forget the wires, featuring a Built-in bluetooth module allowing operation with a commercially available bluetooth headset, or use with Yaesu’s optional SSM-BT10 headset.

Built around an ultra-durable polycarbonate housing, the FTA-850L meets the IPX-5 water proof rating, and the stringent MIL-STD-810H standards.

Features

  • Oversized 2.4″ TFT Color Display (240 x 320 pixel)
  • Dual Frequency Display
  • Wireless Bluetooth operation
  • ILS Navigation Display (localizer and Glide Slope)
  • VOR Navigation Display
  • Integrated 66 Ch WAAS GPS Receiver
  • Waypoint Navigation

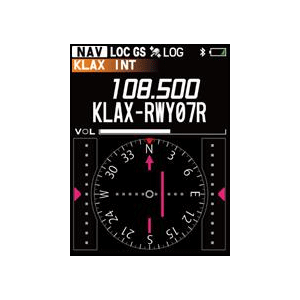

ILS Navigation (Localizer and Glide Slope)

When the FTA-850L receives an ILS signal, the display will automatically switch to the NAV band screen which shows a CDI (Course Deviation Indicator) based on the received localizer signal or the glide slope signal. Course and height deviation are clearly presented on the color CDI display, and aid with the landing approach under bad weather conditions.

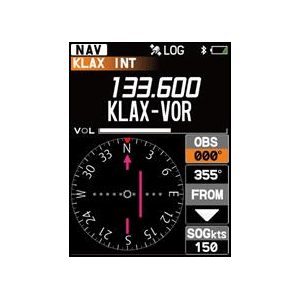

VOR Navigation

When the FTA-850L receives a VOR signal, the display automatically switches to the NAV band screen and shows the CDI. The top of the compass rose always indicates the direction set as the OBS. The SOG (Speed Over Ground) is displayed only when the FTA-850L internal GPS unit is activated and a fix is acquired.

Flight-Route Display and Navigation

The Flight Route Navigation feature clearly presents the traveling route, listing the waypoints from the departure point to the final destination, including the current position where Navigation is being performed. Route, Location and travel status can be assessed at a glance. Navigation is also displayed on an easy-to-read color compass screen.

Dual Frequency Display

DD (Dual Frequency Display) screen presents two frequencies separately on the top and bottom of the screen. The most recently tuned information (Comm Frequency, Memory group and Weather channel) are always set into the active channel automatically. the target mode and channel can easily be switched between different modes using the DD screen, without going through the MENU.

400 Channel Memory bank

The FTA-850 can store up to 400 Memory channels for quick and easy retrieval. With the capability of using up to 14 Alphanumeric characters per name the FTA-850 allows for a better channel description.

Meets MIL-STD-810H

The FTA-850 has been tested and complies with the Military Standard MIL-STD-810H. Similar to commercial Land Mobile radios, all current Yaesu Airband Transceivers have been tested for durability against Low temperatures, High temperatures, Shock, Vibration, Dust and Rain, ensuring many years of rugged use.

PC Programmable

The FTA-850 channel configurations can easily be reprogrammed using the supplied USB programming cable and the YCE01 programming software.

Specifications

  • High-Capacity 2200mAh Li-Ion battery
  • Channel spacing: 8.33kHz / 25kHz
  • Output: 6 watt TX power output
  • Size: 60mm x 132mm x 34mm
  • Weight: 395g

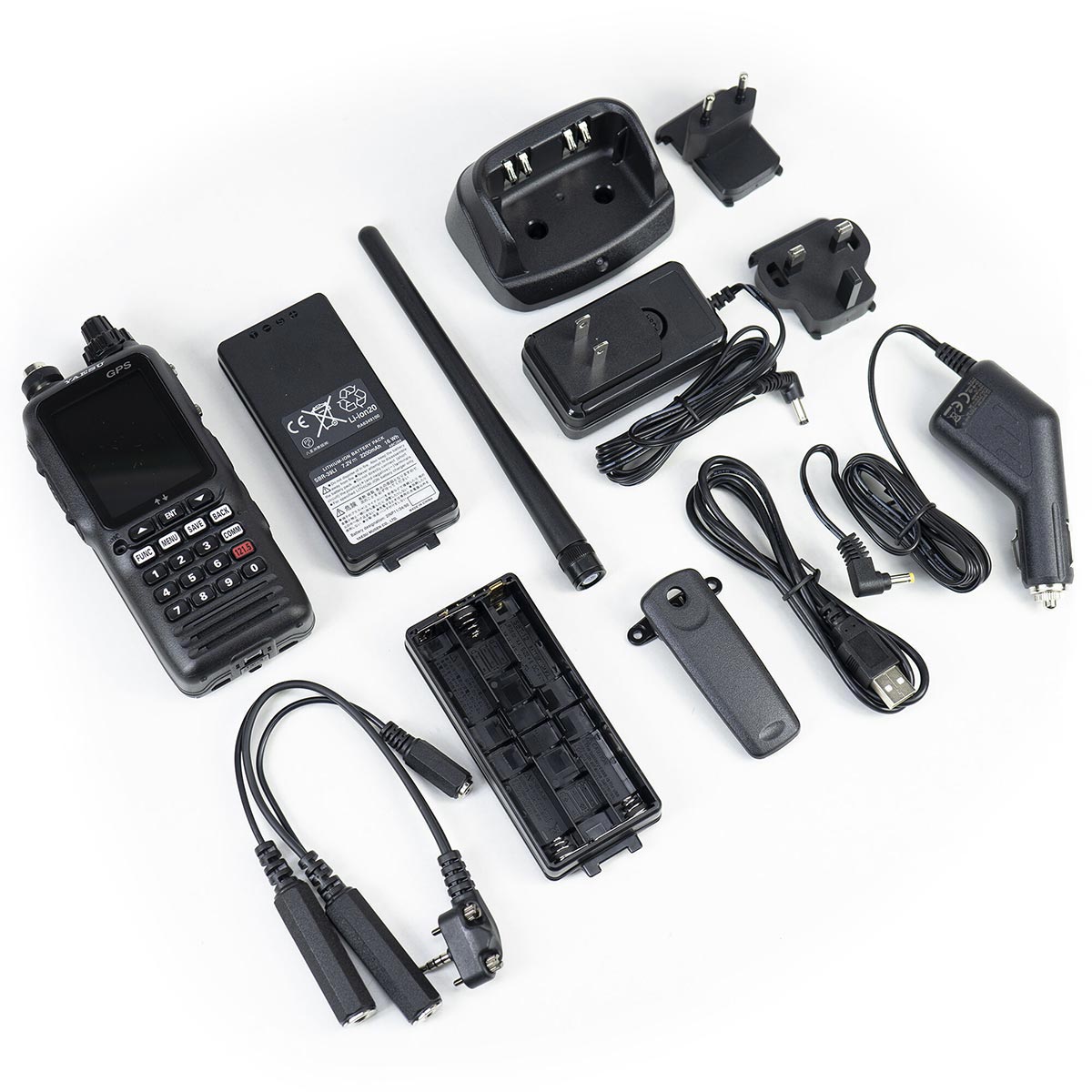

Included in delivery

  • FTA-850L 8.33kHz Airband transceiver (w/ GPS + ILS + VOR)
  • SBR-39 Li-ion battery pack
  • SBT-12 Battery tray (6 x AA)
  • SHB-11 Belt clip
  • SBH-11 Charging cradle
  • SDD-12 DC (car)charger
  • SAD-25 AC (230V) Wall charger
  • SCU-42 Headset adapter cable
  • USB programming cable
  • Operating Manual
  • Warranty Card

Warranty

The Yaesu FTA-850L is made in Japan and backed by an industry leading 3 year warranty.

Video

Unboxing and introduction to the new Yaesu FTA-850L.

Receiving a VOR signal on the Yaesu FTA-850L.

Using the Dual Frequency Display on the Yaesu FTA-850L.

Manual

FTA-850L_OM_ENG

FTA-850L_OM_FRA

FTA-850L_OM_GER

FTA-850L_OM_ITA

FTA-850L_OM_SPA

Additional information

Weight 1,2 kg
