Description
These O2 cylinders can replace the MH AL-248 and AL-415 cylinder, because the cylinder diameter is 111 mm; the same as the Mountain High cylinders. They can also use the O2 mounting bracket for MH AL-248/415 cylinders

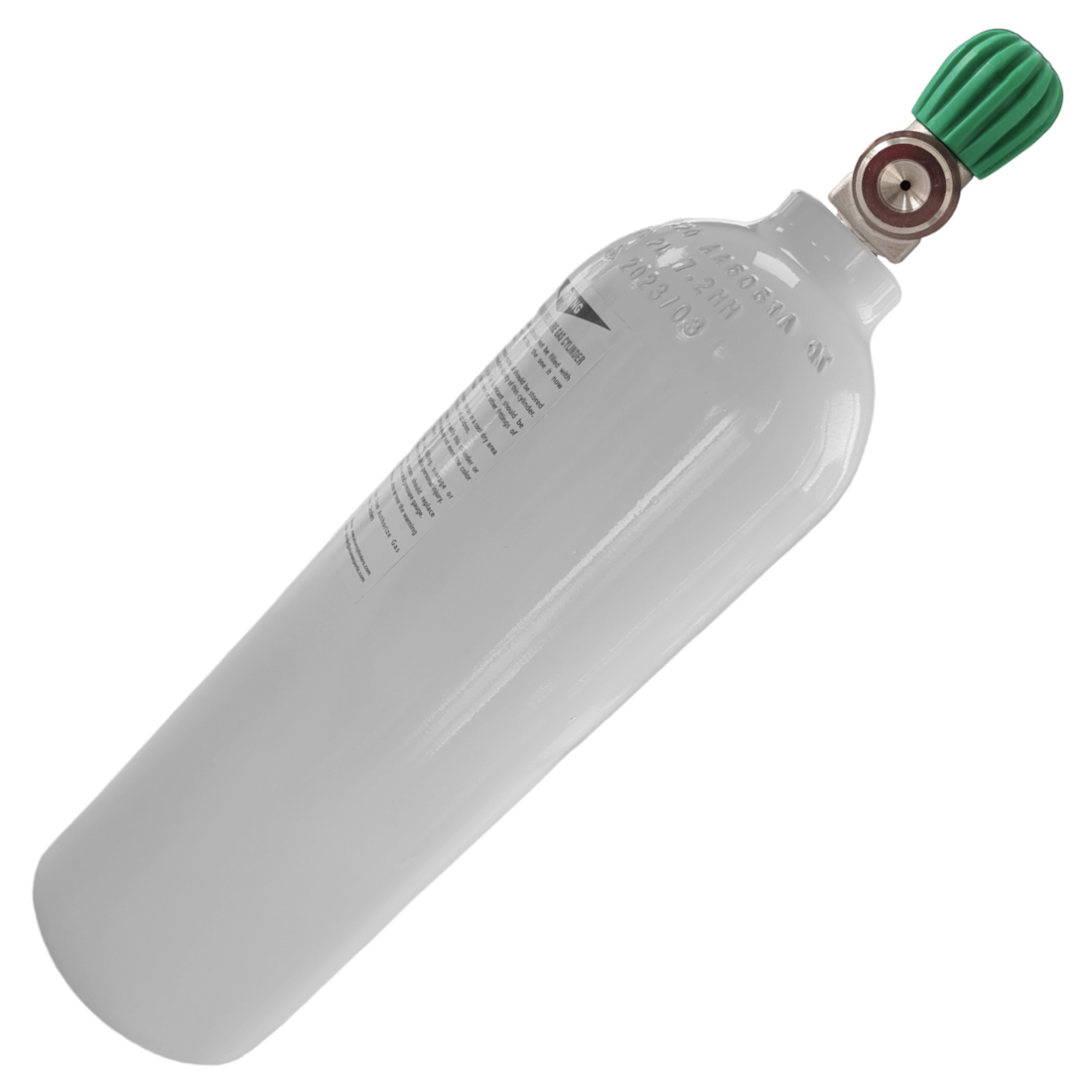

Al-Can aluminum oxygen cylinder

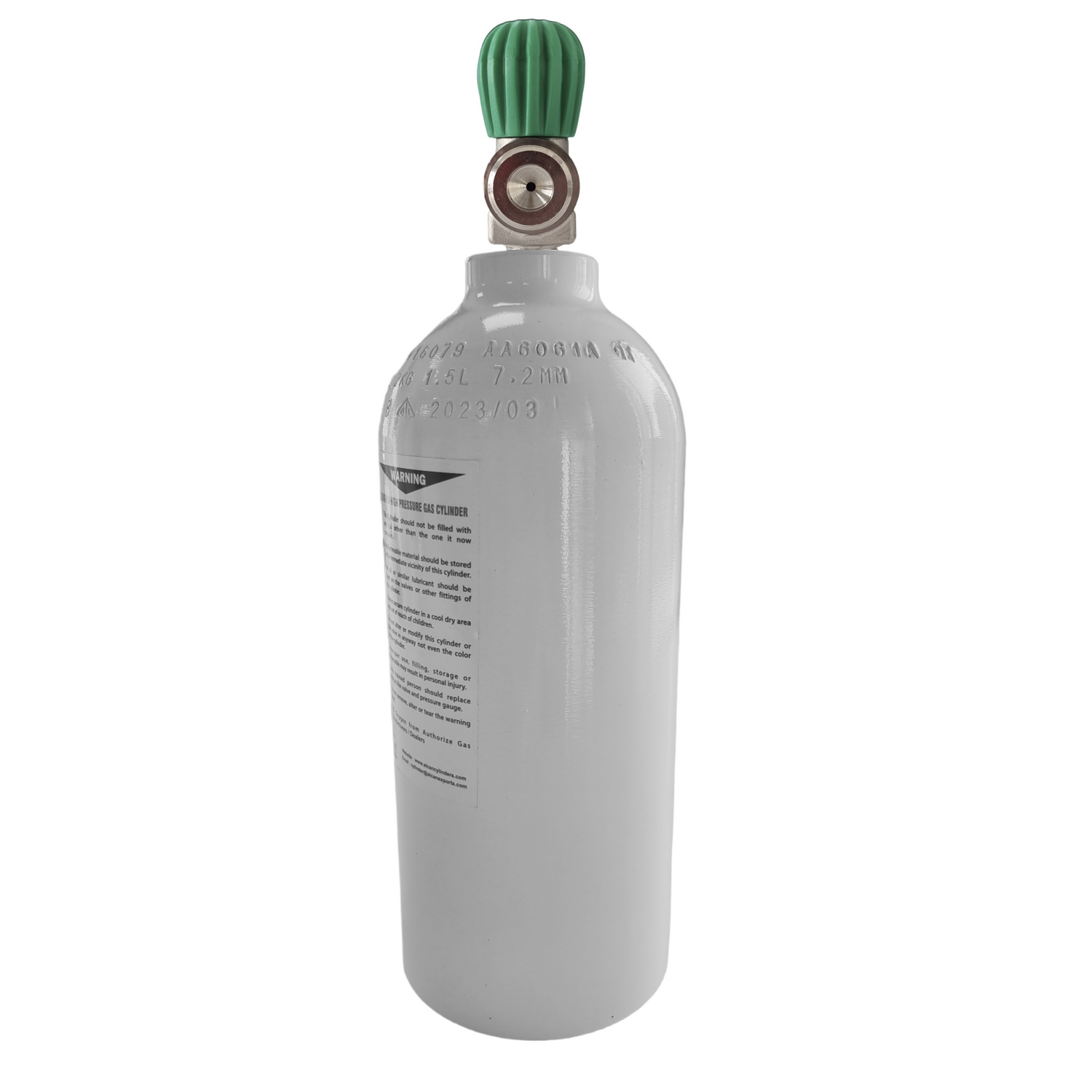

Specification 1.5 liter:
- Comparable with MH AL-248
- Capacity 300 L
- Pressure 200 bar
- Length 35 cm
- (Length AL-248 = 31 cm)
- Ø cylinder 111 mm
- Empty weight 2,2 kg
- valve DIN477 Euro-norm
- inspection interval 10 years

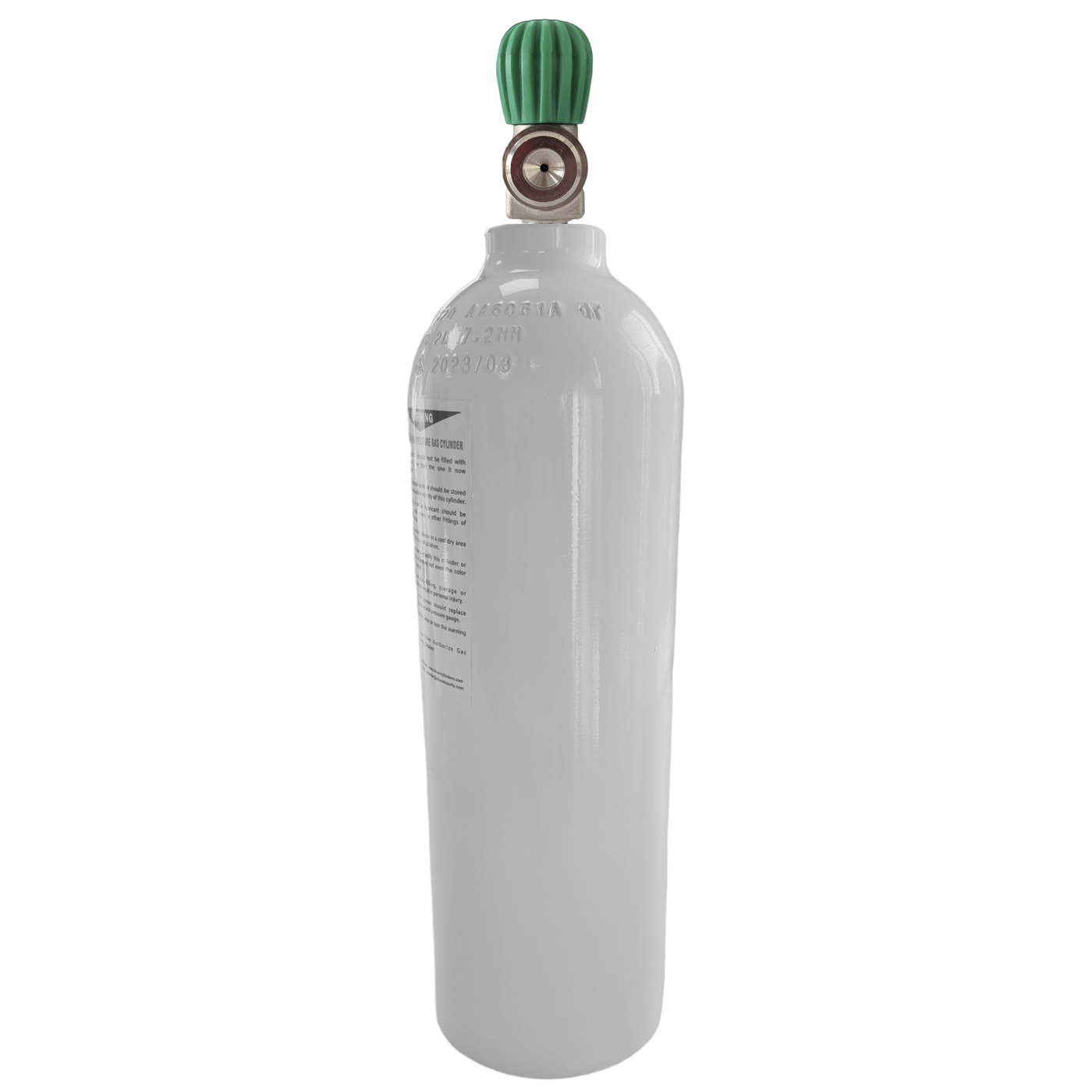

Specification 2 liter:
- Comparable with MH AL-415
- Capacity 400 L
- Pressure 200 bar
- Length 41 cm
- (Length AL-415 = 45 cm)
- Ø cylinder 111 mm
- Empty weight 2,7 kg
- valve DIN477 Euro-norm
- inspection interval 10 years
The length is measured from bottom up to and including the opening valve.
These O2 cylinders have a thicker cylinder wall than the Mountain High aluminium cylinders and can be filled up to the standard European filling pressure of 3000 psi / 200 bar, in stead of 2015 psi / 135 bar for the Mountain High cylinders.
They have an inspection interval 10 years compared to 5 years for the Mountain High cylinders.
Duration when using the Mountain High EDS-02D1 (one pilot) system with:
- 1.5 Liter bottle @ 200 Bar @ 15.000 ft: 8,9 hours / 18.000 ft: 6,9 hours.
- 2 Liter bottle @ 200 Bar @ 15.000 ft: 11,8 hours / 18.000 ft: 9,2 hours.
Duration when using the Mountain High EDS-02D2 (two pilots) system with:
- 1.5 Liter bottle @ 200 Bar @ 15.000 ft: 4,4 hours / 18.000 ft: 3,5 hours.
- 2 Liter bottle @ 200 Bar @ 15.000 ft: 5,9 hours / 18.000 ft: 4,6 hours.
