Oxygen Cylinder Transfiller System (DIN477-9 to DIN477-9)
Description

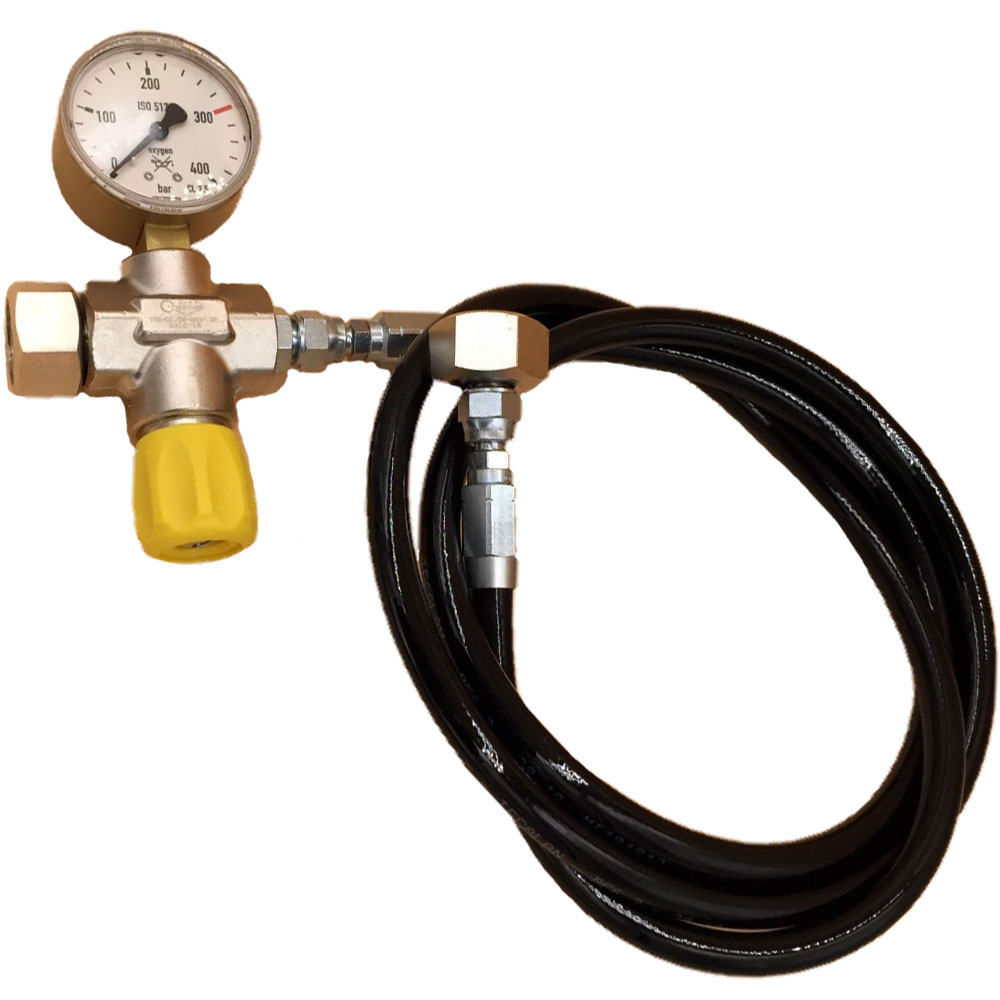

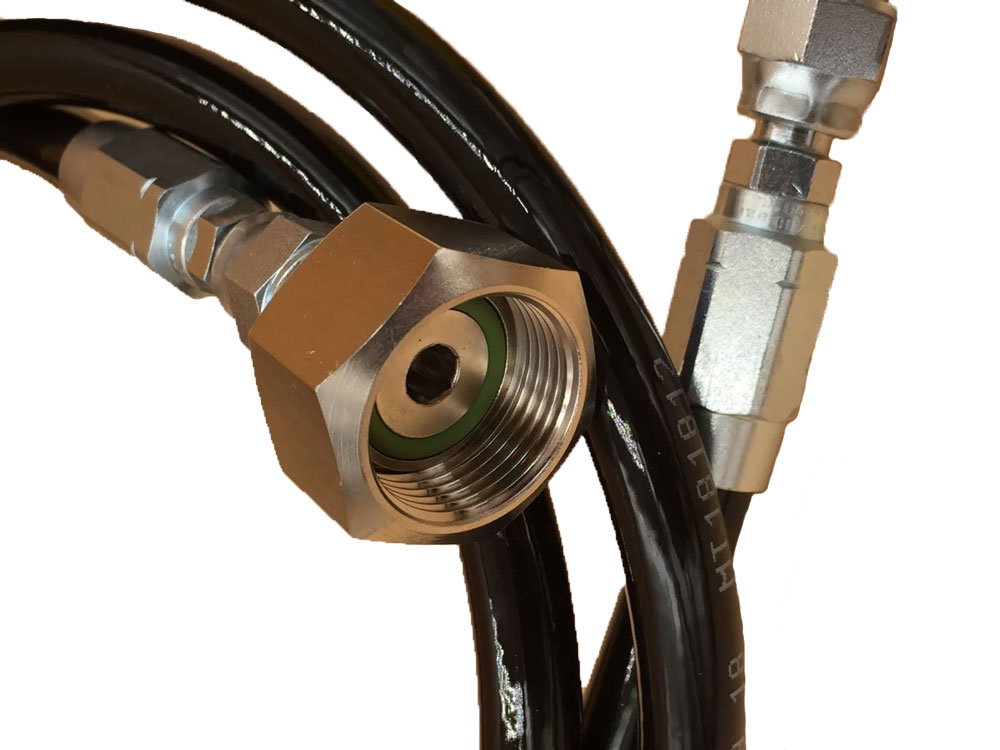

This custom-made transfiller system provides economical oxygen transfilling for soaring and flying clubs where frequent servicing of cylinders occurs. Both connecting ends have O-ring seals for a positive air-tight fit. The pressure gauge shows the oxygen pressure of the connected O2 cylinder.
A vent valve (yellow knob) is fitted in the system so that the high-pressure hose can be depressurized before dismantling. This makes loosening of the connectors more easily and prevents damaging the O-ring seals.
Specification
- High pressure hose suitable for oxygen (2m long)
- High pressure hose with G1/4″ nuts and 60° sealing cone
- Euro DIN477-9 connectors on the G1/4″ nut and valve housing
- With analogue manometer accuracy class 2.5 up to 400 bar
- Operating pressure of the high pressure hose max. 315 bar
- Operating temperature range -10°C to +60°C
- With air vent valve
You will need a Residual Pressure Valve adapter to open this valve, when filling O2 cylinders with a Residual Pressure Valve.
