Laminar aerotec – BWS Electric DG800 HpH

 2.025,00

The proven and reliable electric wiper-motor system.

Available on back-order

Product total
Options total
Grand total
Categories: ,

Description

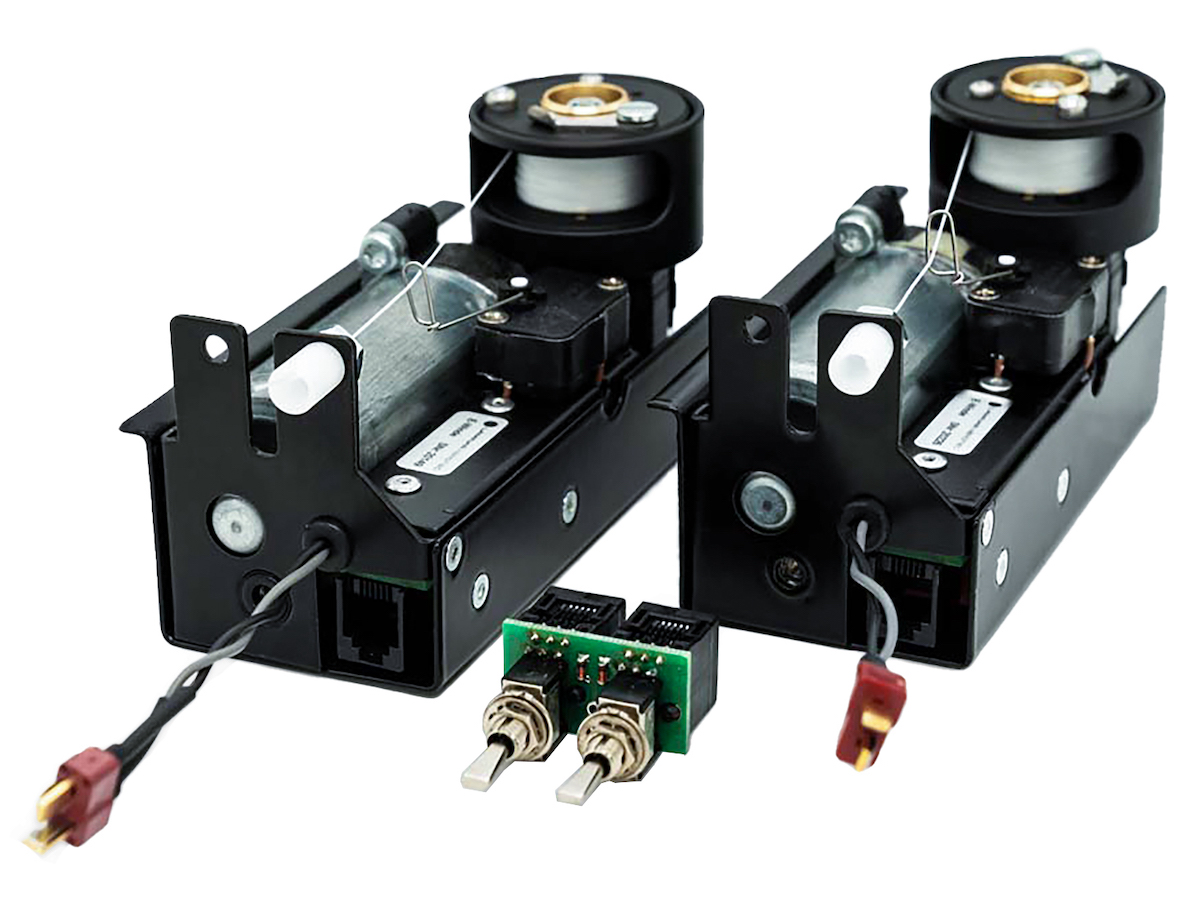

Laminar aerotec BWS Electric

The space‐saving bug wiper for the open design of the DG80x series, for HpH glider and applications with limited space.

These features are convincing:

  • short cleaning time of approx. 15 seconds per sash side ‐ even at high speeds
  • three safety features: rope tension sensor, slip clutch and automatic shutdown on overload
  • span adjustment (option)
  • simultaneous cleaning with both bug cleaners possible
  • various mounting plates for easy and flexible installation
  • tear‐resistant Dyneema line (return line)

Technical data:

  • dimension length x width x height: 151.6 x 56.7 x 72 mm
  • Weight of both electric winches including accessories: 1,600 grams
  • Voltage: 10 ‐ 14.5 Volt
  • Power consumption standby: 0 A
  • Current consumption during operation: unwind 2.2 A, rewind 5.5 A
  • Max. current consumption: 8.5 A
  • Fuse electric winch: 10 A
  • Fuse battery minimum: 15 A
  • Cleaning speed: approx. 1m/s at 120‐180 km/h
  • Rope length: standard for gliders up to 20 m wingspan = 12 m (overlength on request)

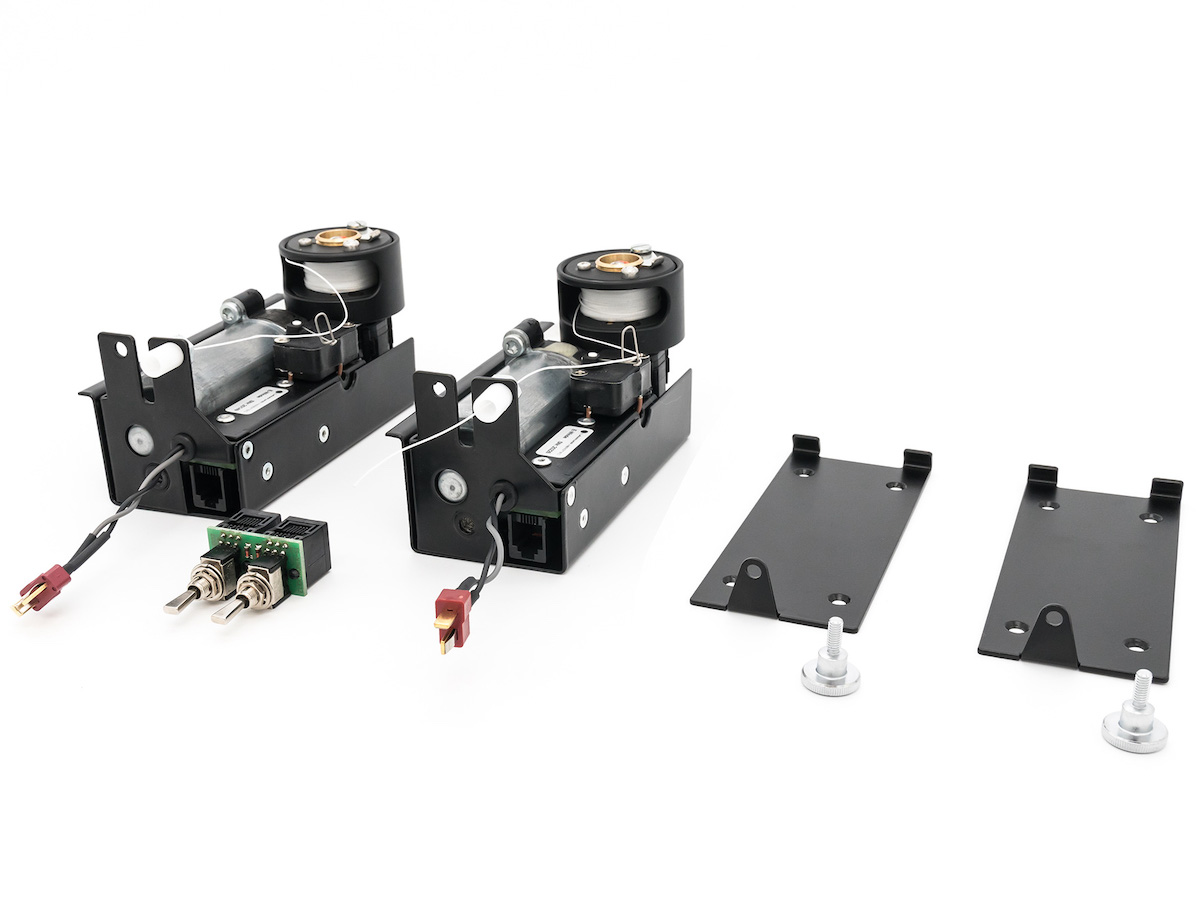

Included in delivery:

  • 2 pieces BWS electric winches
  • 2 pieces mounting plates no. 2
  • 1 (2) double switch for instrument panel installation

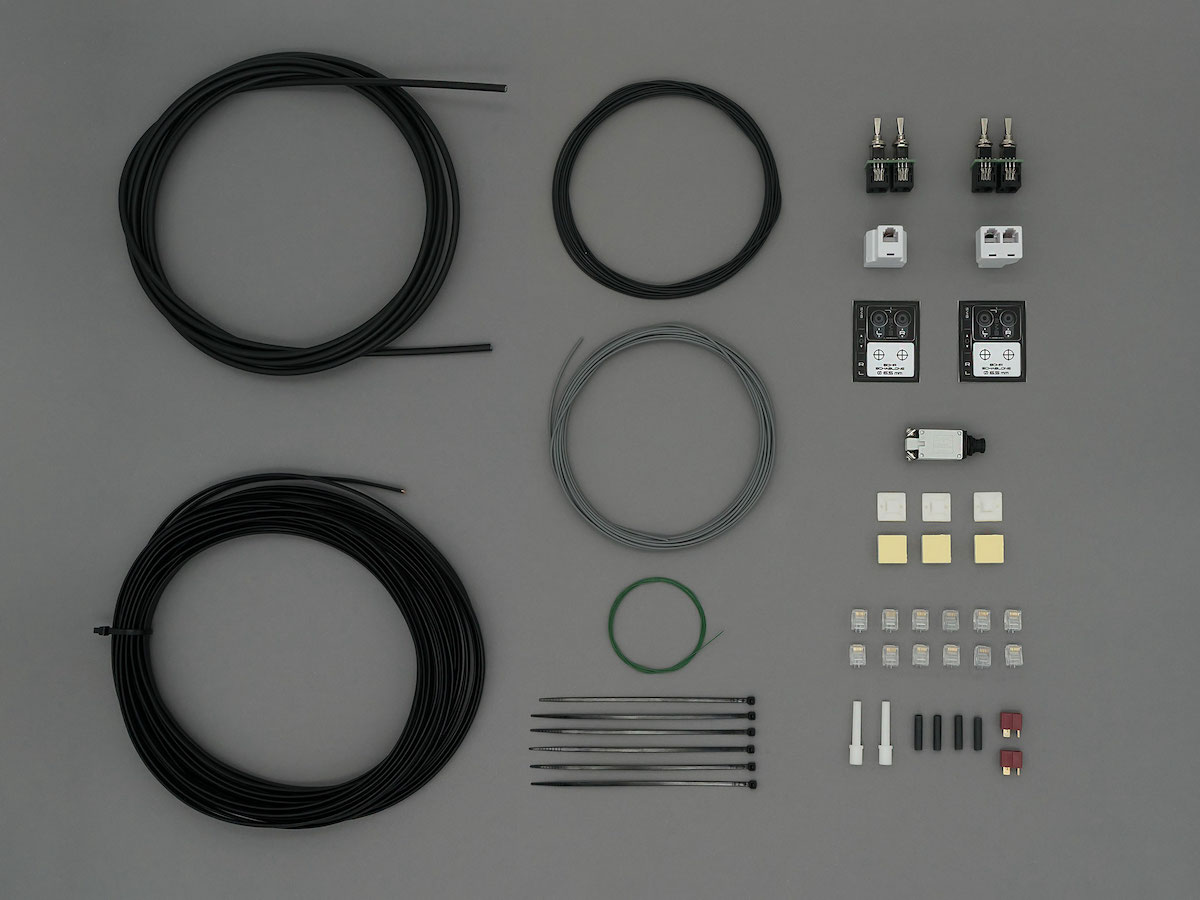

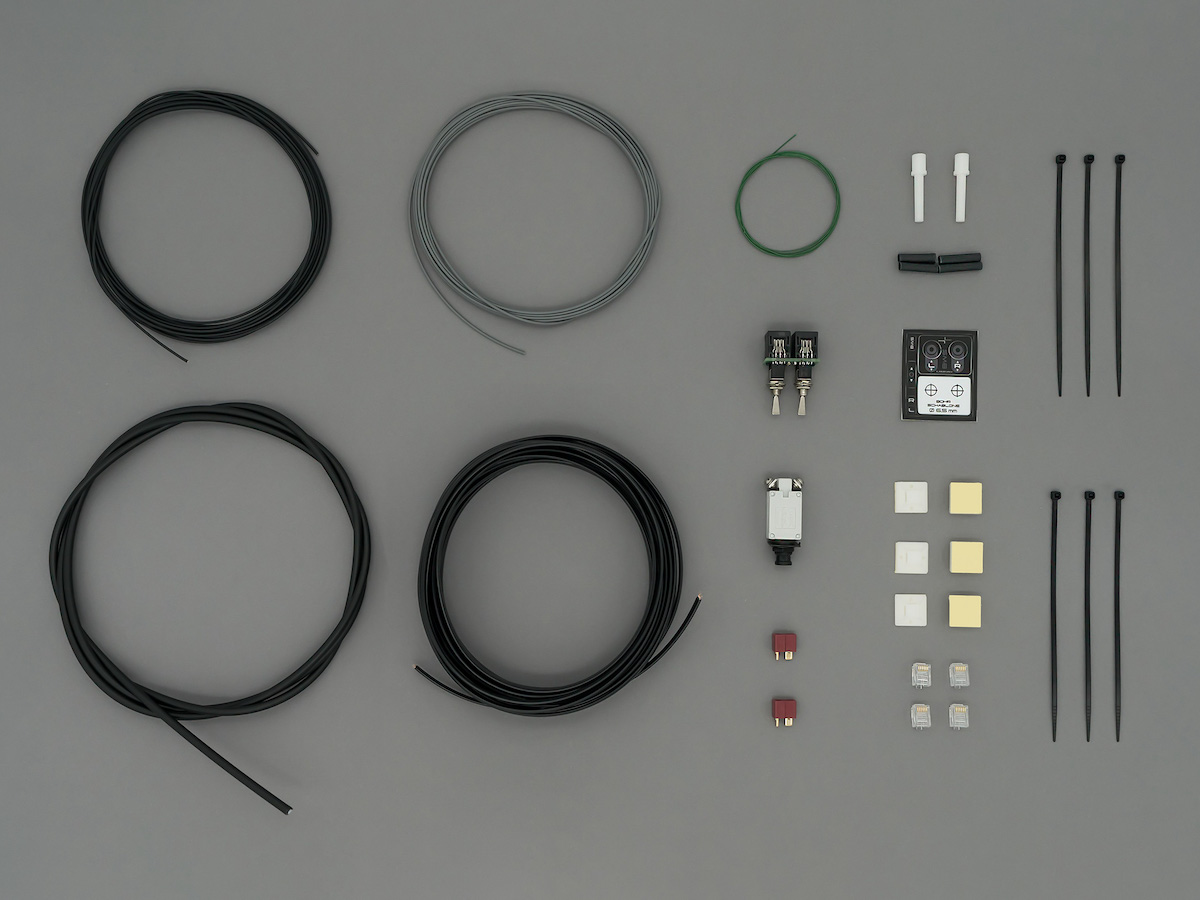

  • installation kit single (double) seater
  • installation and operating manuals

Additional information

Weight 1,6 kg
