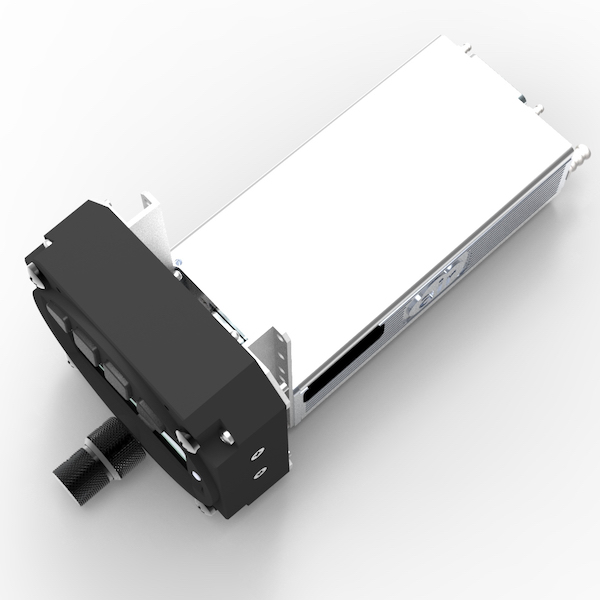

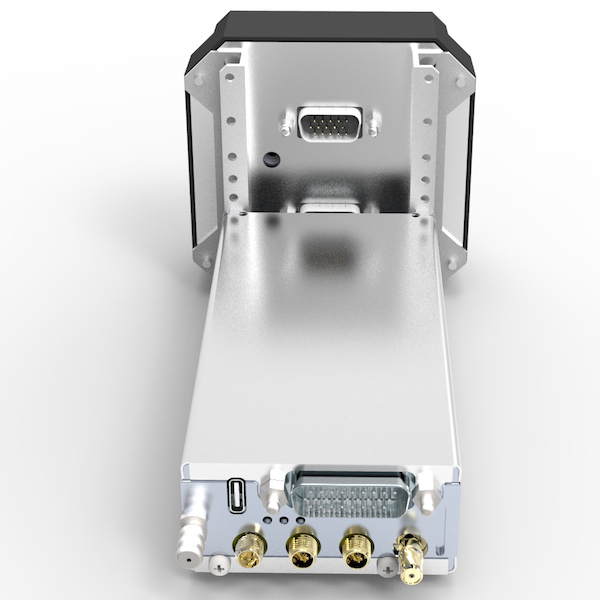

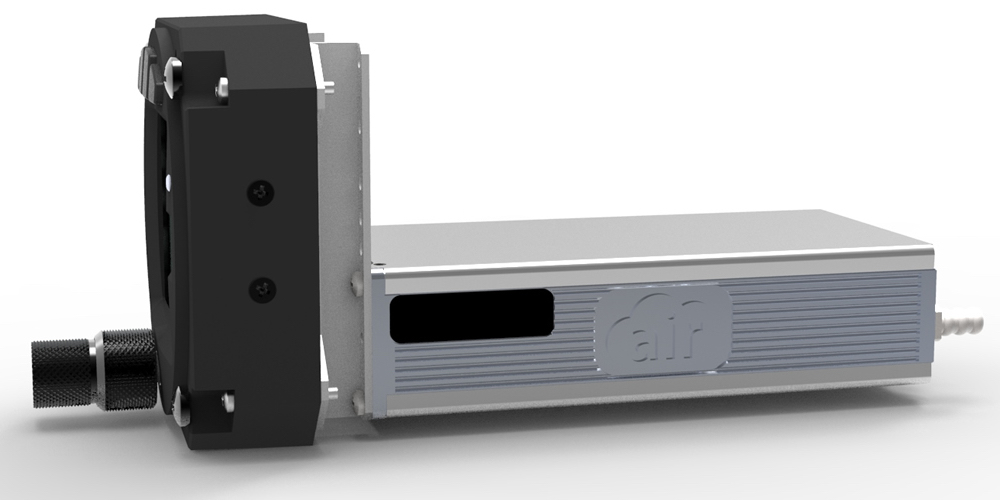

AIR Traffic – System & Traffic display 80 kit


Contact us for an individual DISCOUNT on the regular sale price!

Available on back-order

Categories: , Tags: ,


AIR Traffic, the new collision avoidance system, marks the heart of the traffic avoidance installation in the aircraft. Its flexible interface concept allows for direct connection to many compatible indicators, third party navigation systems (including IFR certified panelmount systems such as GARMIN GTN®), or even Apps.

AIR Traffic transmits and receives FLARM® data. This means it is shows and is recognized by over 35,000 FLARM® users worldwide. In addition to FLARM® signals, it receives ADS-B and Mode-S traffic data (It is only capable of computing the horizontal and vertical range of Mode-S traffic. The direction of Mode-S targets is not detected).

AIR Traffic integrates quickly into exisiting avionics ecosystems. Minor Change Approvals and EASA Standard Changes are available for many aircraft types simplifying the legal part of the installation process.


  • Sends PowerFLARM® traffic data.
  • Receives (Power)FLARM® traffic data. Interoparable with 35.000 FLARM users worldwide.
  • Receives ADS-B and Mode-S transponder data.
  • Warns reliably from dangerous traffic, obstacles (database required), and alert zones.
  • Delivers GPS and traffic data to hundreds of comaptible displays, moving maps, indicators, and apps.


  • Latest generation traffic technology with multiple antennas, antenna diversity, FLARM, ADS-B IN and transponder reception. Works worldwide (automatically adjusts frequency to region).
  • Versatily interface technology, 3x RS232, ARINC 429, USB and WiFi directly integrated.

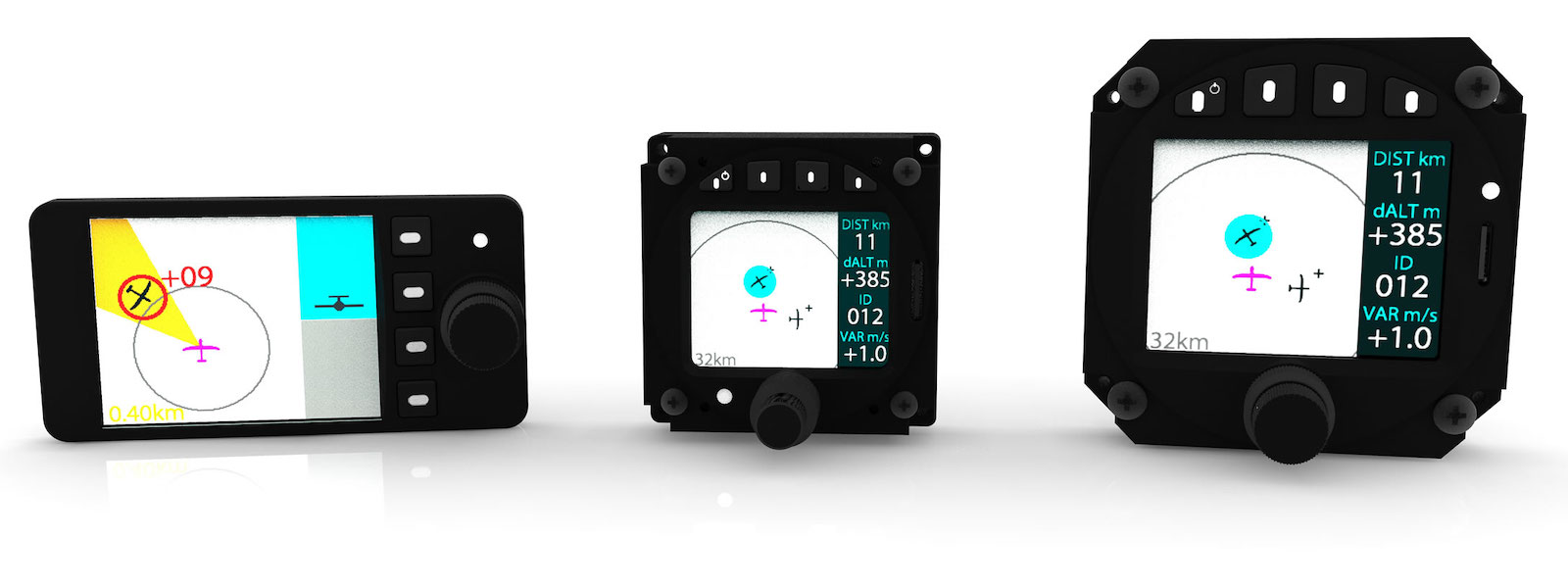

  • Can be mounted remotely, or optionally combined with an AIR Traffic display.
  • Wireless communication with aviation apps, wireless configuration over any PC, smartphone, or tablet.
  • Switch inputs, relay for control of external electronics (like ACL), works with any exterior and interor antenna.
  • Minor Change Approval available for legal installation into hundreds of aircraft.


  • AIR Traffic main unit
  • AIR Traffic 80 display

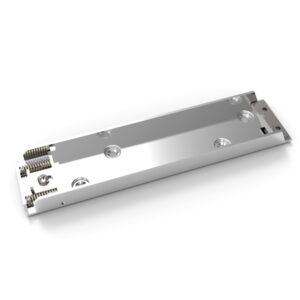

  • Required accessories to mount both devices together
  • FLARM and ADS-B cockpit antennas with 1m cable
  • GPS cockpit antenna with 1.5m cable
  • Documentation
